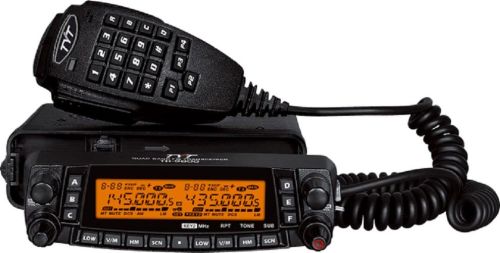

TYT TH-9800 MOBILE QUADBAND TRANSCEIVER 10m / 6m / 2m / 70cm

Shop Home > AMATEUR AVIATION CB MARINE PMR RADIO > AMATEUR RADIO RECEIVERS AND TRANSCEIVERS > TYTERA RADIO

TYT TH-9800 MOBILE QUADBAND TRANSCEIVER 10m / 6m / 2m / 70cm
  • TYT TH-9800 MOBILE QUADBAND TRANSCEIVER 10m / 6m / 2m / 70cm
  • TYT TH-9800 MOBILE QUADBAND TRANSCEIVER 10m / 6m / 2m / 70cm
  • TYT TH-9800 MOBILE QUADBAND TRANSCEIVER 10m / 6m / 2m / 70cm

  • TYT TH-9800 MOBILE QUADBAND TRANSCEIVER 10m / 6m / 2m / 70cm

  • QUAD BAND RADIO WITH DETACHABLE HEAD INCLUDING SEPARATION KIT
  • £194.95

Quantity:  at  £194.95  each


with us as the newest "PLUS UPGRADE" version compact quad-band transceiver for the amateur radio bands 10m / 6m / 2m / 70cm The TH-9800 has a detachable faceplate and a wideband receiver incl. Flight Radio (AM) and Freenet, PMR, CB ... Technical data







Frequency range TX (transmitter)
  • Amateur Radio bands 10m / 6m / 2m / 70cm
  • (Expandable as for 11m band)
Frequency Range RX (receiver)
  • 26-33 MHz (FM)
  • 47-54 MHz (FM)
  • 108-136 MHz (AM)
  • 136-174 MHz (FM)
  • 320-399 MHz (FM)
  • 400-480 MHz (FM)
  • 750-950 MHz (FM)
transmission power
  • 5/10/20/50 W switchable (10m / 6m / 2m)
  • 5/10/20/40 W switchable (70cm)
modes
  • Send FM
  • Receiving FM / AM
channel spacing
  • 2.5 / 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 15/25/30/50/100 kHz programmable
memory channels
  • 800 standard storage locations (alphanumeric)
  • 5 storage for cutoff-scan
  • 6 presets for preferred frequencies
  • 6 presets for fast access (Hyper-Memory)
Key Features
  • Detachable Panel
  • Illuminated display
  • Cross band repeater function
  • 2 separate receivers for dual reception
  • Repeater shift
  • 1750Hz tone
  • CTCSS & DCS function (standard tones and individually programmable tones)
  • DTMF encoder (incl. DTMF autodialer to 16 points)
  • 2-Tone & 5-tone (via PC software programmable)
  • Various scan functions (incl. CTCSS & DCS scan)
  • Automatic range checking (ARTS function)
  • APO function
  • CPU clock switch
  • Keyboard Lock Function
  • Time-Out Timer function
  • Scrambler function
  • Compander function
  • Reset function
  • PC programmable (available PC cable as an option, software as a free download)
  • Connection socket for additional loudspeaker
  • and much more ...
microphone connector
  • Western
antenna connection
  • PL female
power supply
  • 13,8V DC (+/- 5%)
Dimensions in mm (WxHxD)
  • 140 x 39 x 169
weight
  • 1.2 kg (with microphone)


Delivery
TYT TH-9800 mobile transceiver
DTMF hand microphone including microphone holder.

DC cable
Panel mount
Separation cable for operating unit (4,5m)
Instructions
Weight 1.4 kg
