RG213UBX 50 Ohm BLACK COAXIAL CABLE 20 METRES WITH 2 X PL-259 PLUGS

Shop Home > AMATEUR AVIATION CB MARINE PMR RADIO > CB RADIOS ANTENNAS ACCESSORIES > CB ANTENNAS & ACCESSORIES > COAXIAL CABLE

RG213UBX 50 Ohm BLACK COAXIAL CABLE 20 METRES

  • RG213UBX 50 Ohm BLACK COAXIAL CABLE 20 METRES WITH 2 X PL-259 PLUGS

  • COMPLETE WITH 2 X PL-259 PLUGS WITH GOLD PLATED CENTRE PIN PLEASE STATE IF YOU REQUIRE PLUGS FITTING FREE OF CHARGE
  • £29.95
Out of stock.

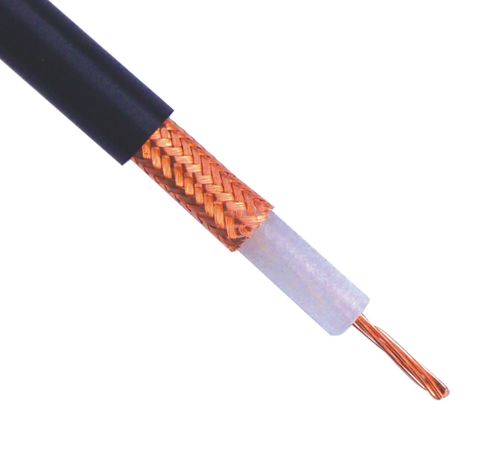

Good quality RG213UBX 50Ω coaxial cable suitable for HF, VHF, UHF installations

Specifications:

Inner Conductor: 3.1mm2

No / size wire: 7/0.75 plain annealed copper

Insulation: polyethylene

Outer conductor: plain copper braid 95% coverage

Sheath: PVC

Outside diameter: 10.3mm

Capacitance: 98pF/m

Attenuation per 100m:

6.3dB at 100MHz, 23.3dB at 1000MHz

20m reel.
