RG MINI 8 TOP QUALITY BLACK COAXIAL CABLE 15 METRES WITH 2 X PL-259 PLUGS

Shop Home > AMATEUR AVIATION CB MARINE PMR RADIO > CB RADIOS ANTENNAS ACCESSORIES > CB ANTENNAS & ACCESSORIES > COAXIAL CABLE

RG MINI 8 TOP QUALITY BLACK COAXIAL CABLE 15 METRES

  • RG MINI 8 TOP QUALITY BLACK COAXIAL CABLE 15 METRES WITH 2 X PL-259 PLUGS

  • COMPLETE WITH 2 X GOLD PLATED CENTRE PIN PL-259 PLUGS PLEASE STATE IF YOU REQUIRE THE PLUGS FITTING FREE OF CHARGE
  • £14.95

:  at  £14.95  each

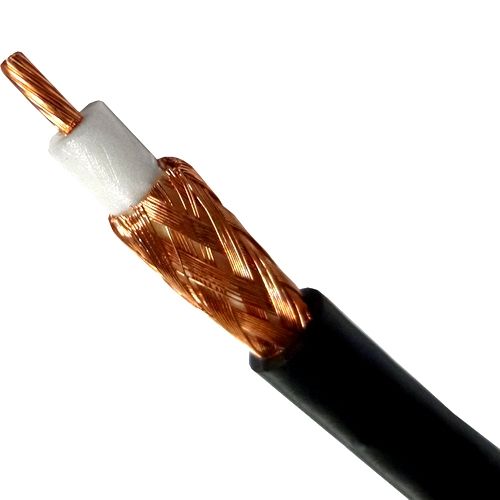

Very popular low loss coaxial cable with very close meshed braid, similar electrical specifications to RG213UBX but diameter similar to RG58, making it very flexible to use in all applications requiring a long run of cable.

Available in Black, on15m reels.

  • High quality Low Loss co-axial cable
  • Plain copper inner conductor
  • Foam polyethylene dielectric
  • Plain copper outer conductor
  • Low smoke and fume polyvinyl-chloride sheath
  • Impedance 50 ohms
  • Sheath diameter 6.1mm
  • Capacitance 80pF/m
  • Velocity ratio 80%
  • Screening effectiveness 100-900 Mhz >55
  • Attenuation  :- dB/100m
  • 50Mhz - 7.2
  • 100Mhz - 10.5
  • 400Mhz - 22.2
  • 600Mhz - 27.6
  • 860Mhz - 33.9
  • 1000Mhz - 37.0
  • 2400Mhz - 64.5
