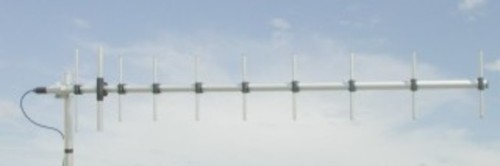

SIRIO WY 400 10N 400-470 MHz Yagi 10 element

Wideband UHF Yagi 10 element for the frequency range 400-470 MHz precision workmanship and high quality Made in Europe. Specifications

Frequency	400-470 MHz
Profit	14 dBi
Impedance	50 Ohm
Max. Power	150 Watts (CW) a 30 °
Radiation / emission (H-plane)	50 ° at center freq. (Beam width at -3dB)
Radiation / emission (E-plane)	45 ° at center freq. (Beam width at -3dB)
Front to back ratio / pre-return ratio	≥18 dB
Polarization	linear vertical or horizontal
SWR bandwith	≤1.5: 1
Feed system / feed	RG303 PTFE coax balun with / inside boom
Material	Anodized 6063-T5 aluminum, EPDM rubber, thermoplastic UV stabilized, Chromed brass
Tourning radius	1860mm
Connection	N female (N female) with rubber water cap
Mounting	Pole mount for poles with 35-52mm diameter (mast clamps included)
Dimensions	2000 x 375 mm
Weight	approximately 2.04 kg

As a special option to +/- 20 degrees swivel mast tube holder (Tilting bracket) is available.
