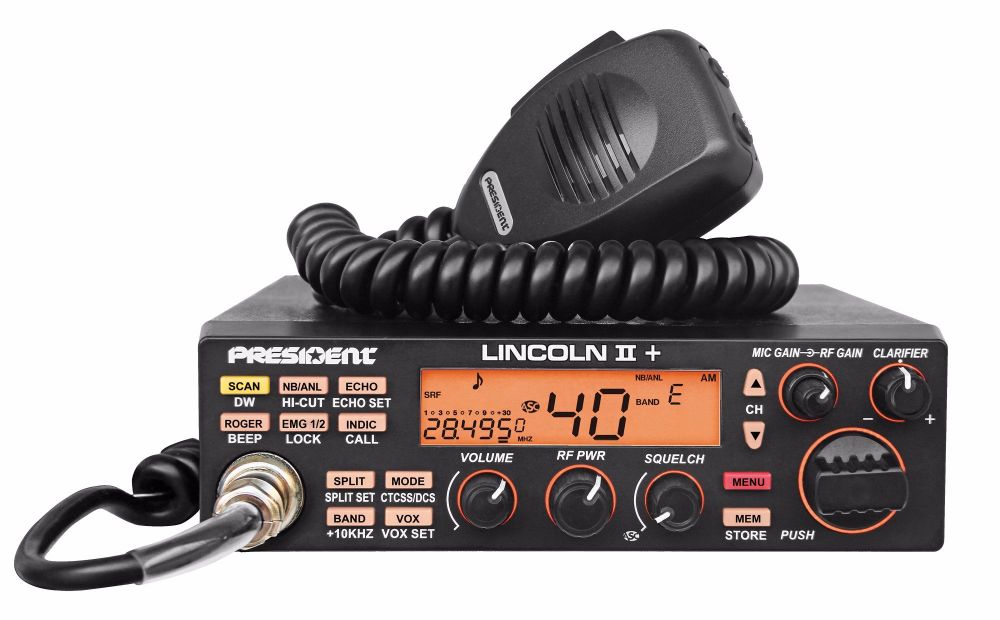

PRESIDENT LINCOLN II + (LATEST VERSION) 10/12 METRES (EXPANDABLE)

Shop Home > AMATEUR AVIATION CB MARINE PMR RADIO > AMATEUR RADIO RECEIVERS AND TRANSCEIVERS > PRESIDENT RADIO

PRESIDENT LINCOLN II + (LATEST VERSION) 10/12 METRES (EXPANDABLE)
  • PRESIDENT LINCOLN II + (LATEST VERSION) 10/12 METRES (EXPANDABLE)
  • PRESIDENT LINCOLN II + (LATEST VERSION) 10/12 METRES (EXPANDABLE)
  • PRESIDENT LINCOLN II + (LATEST VERSION) 10/12 METRES (EXPANDABLE)

  • PRESIDENT LINCOLN II + (LATEST VERSION) 10/12 METRES (EXPANDABLE)

  • £249.95

:  at  £249.95  each


Latest version President Lincoln II + 10/12 metre band radio expandable to include the 11 metre band.

Features:

Rotary switch and Up/down channel selector

- VFO Mode
  (continuous scanning of 24.890 Mhz to 24.990 Mhz and of 28.000 Mhz to 29.700 Mhz)
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address
- Vox function (Hands free)
- ANL filter, NB and HI-CUT
- RF Gain / Mike gain
- Clarifier
- Channels and memories scan
- 6 Memories
- CTCSS (38 tones)
- DCS (104 codes)
- Dim
- MENU function key
- Beep Function
- Roger Beep
- Mode switch AM/FM/LSB/USB/CW
- Dual watch
- Key locking
- SWR (Power Reading /SWR)
- Preset emergency (EMG 1/2)
- TOT (Time Out Timer) adjustable
- Front microphone plug
- External loudspeaker jack

Back light colour: Orange/Blue/ Green

Specifications

Supply : 13.2 V
AM :
FM :
SSB :
CW :
Channel selector : rotary, up / down
VFO mode :
Volume : Volume adjustment and ON/OFF
RF Power :
Squelch : Manual squelch
ASC :
Display : LCD multifunction
Frequencies display :
S-meter : Digital
Public address :
Vox :
Filter ANL :
Filter NB :
Filter HI-CUT :
RF-Gain :
Mike-Gain :
Clarifier :
Scan :
Memory : 6
Dimmer :
F / Menu function key :
Key Beep :
Roger beep :
Dual watch :
Key locking :
SWR (Power Reading /SWR) :
Preset channel : EMG 1/2
CTCSS : 38 tones
DCS : 104 codes
Microphone plug : front (6 pins)
External Vox microphone jack :
External loudspeaker jack :
Size : 170 (W) x 250 (D) x 52 (H)
DIN Size :
Weight : 1,4 kg

Technical characteristics

General
Modulation modes : AM / FM / USB / LSB / CW
Frequency ranges : continuous scanning of 24.890 Mhz to 24.990 Mhz and of 28.000 Mhz to 29.700 Mhz
CTCSS : 38 tones
DCS : 104 codes
Antenna impedance : 50 ohms
Power supply : 12 V
Size : 170 (W) x 250 (D) x 52 (H)
DIN Size :
Weight : 1,4 kg
Accessories supplied : power cord with fuse
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws
Transmission
Frequency allowance : +/- 300 Hz
Carrier power : 50 W AM (PEP) / 35 W FM / 35W USB-LSB (PEP) / 12W CW
Transmission interference : inferior to - 50 dBc
Audio response : 300 Hz to 3 KHz in AM/FM/USB/LSB
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 3,0 mV
Drain : 6 A (with modulation)
Modulated signal distortion : 2 %
Reception
Maxi. sensitivity at 20 dB sinad : 0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW)
Frequency response : 300 Hz to 3 kHz in AM/FM/LSB/USB
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : minimum 0.2 µV - 120 dBm / maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 400 mA nominal / 600 mA maximum
CTCSS Tone List
N°Freq. (Hz)N°Freq. (Hz)N°Freq. (Hz)
00 - oF OFF 13 103.5 26 162.2
1 67.0 14 107.2 27 167.9
2 71.9 15 110.9 28 173.8
3 74.4 16 114.8 29 179.9
4 77.0 17 118.8 30 186.2
5 79.7 18 123.0 31 192.8
6 82.5 19 127.3 32 203.5
7 85.4 20 131.8 33 210.7
8 88.5 21 136.5 34 218.1
9 91.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
DCS Code List
N°DCS (Octal)N°DCS (Octal)N°DCS (Octal)N°DCS (Octal)
1 23 27 152 53 311 79 466
2 25 28 155 54 315 80 503
3 26 29 156 55 325 81 506
4 31 30 162 56 331 82 516
5 32 31 165 57 332 83 523
6 36 32 172 58 343 84 526
7 43 33 174 59 346 85 532
8 47 34 205 60 351 86 546
9 51 35 212 61 356 87 565
10 53 36 223 62 364 88 606
11 54 37 225 63 365 89 612
12 65 38 226 64 371 90 624
13 71 39 243 65 411 91 627
14 72 40 244 66 412 92 631
15 73 41 245 67 413 93 632
16 74 42 246 68 423 94 654
17 114 43 251 69 431 95 662
18 115 44 252 70 432 96 664
19 116 45 255 71 445 97 703
20 122 46 261 72 446 98 712
21 125 47 263 73 452 99 723
22 131 48 265 74 454 100 731
23 132 49 266 75 455 101 732
24 134 50 271 76 462 102 734
25 143 51 274 77 464 103 743
26 145 52 306 78 465 104 754
